XS Horizontal Split Case Pump
Resembling the KSB Omega pump, XS series has wide range of applications including municipal water, HVAC, power plant, mining etc.
| Outlet diameter | 125 ~ 2200 mm |
| Capacity | 22 ~ 22140 m³/h |
| Head | 7 ~ 300 m |
| Operating temperature | -20~200°C |
| Working pressure | Up to 5 MPa |
XS type pump is a new generation of high performance single-stage double-suction centrifugal split pumps. They are mainly used in delivering liquids of the water plant, airconditioner circulation water, heating pipe network system, building water supply, irrigation and drainage of pump stations, power plants, industrial water supply system, fire protection, ships industry and mine. It is a new substitute of SH, S, SA, SLA and SAP.

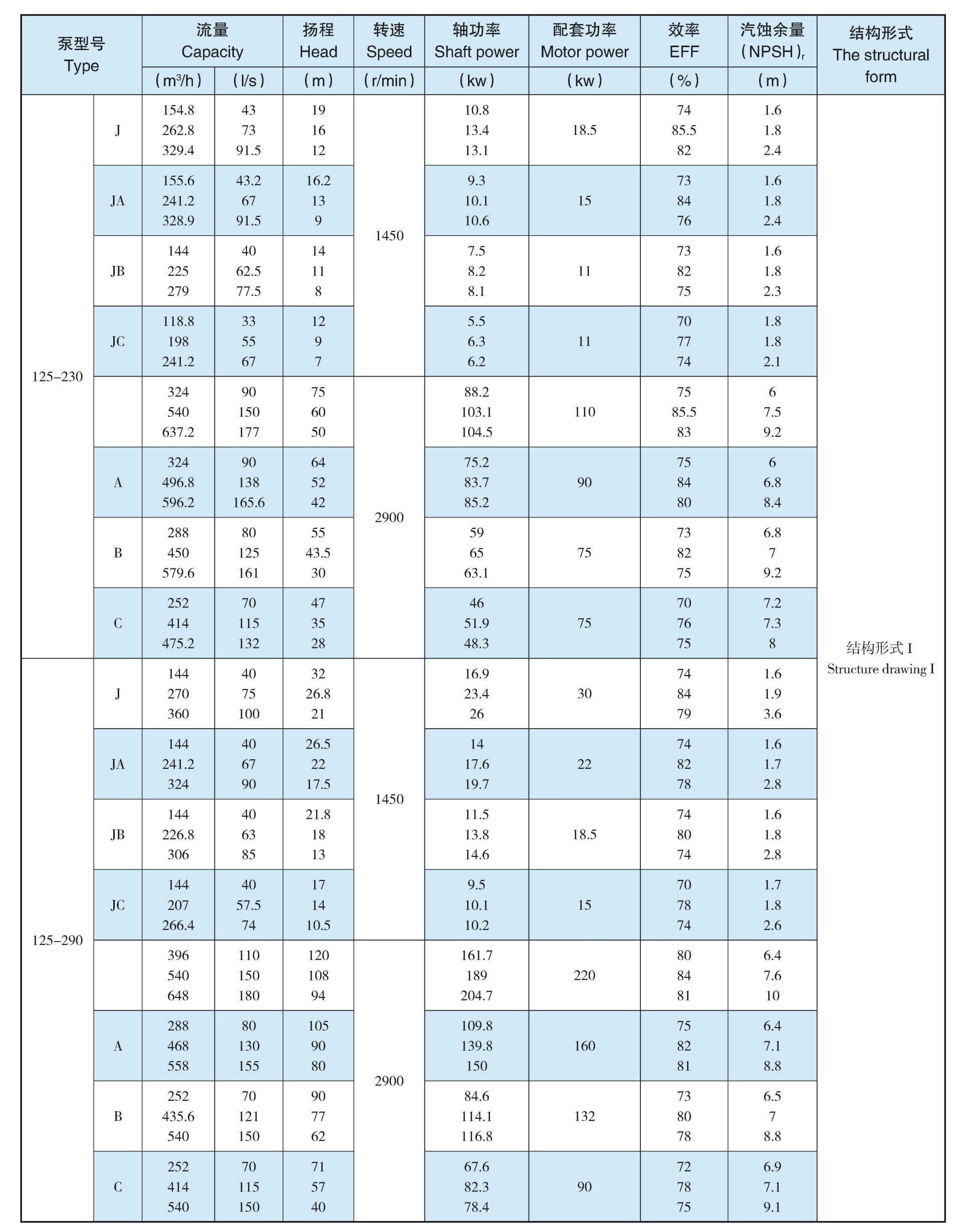

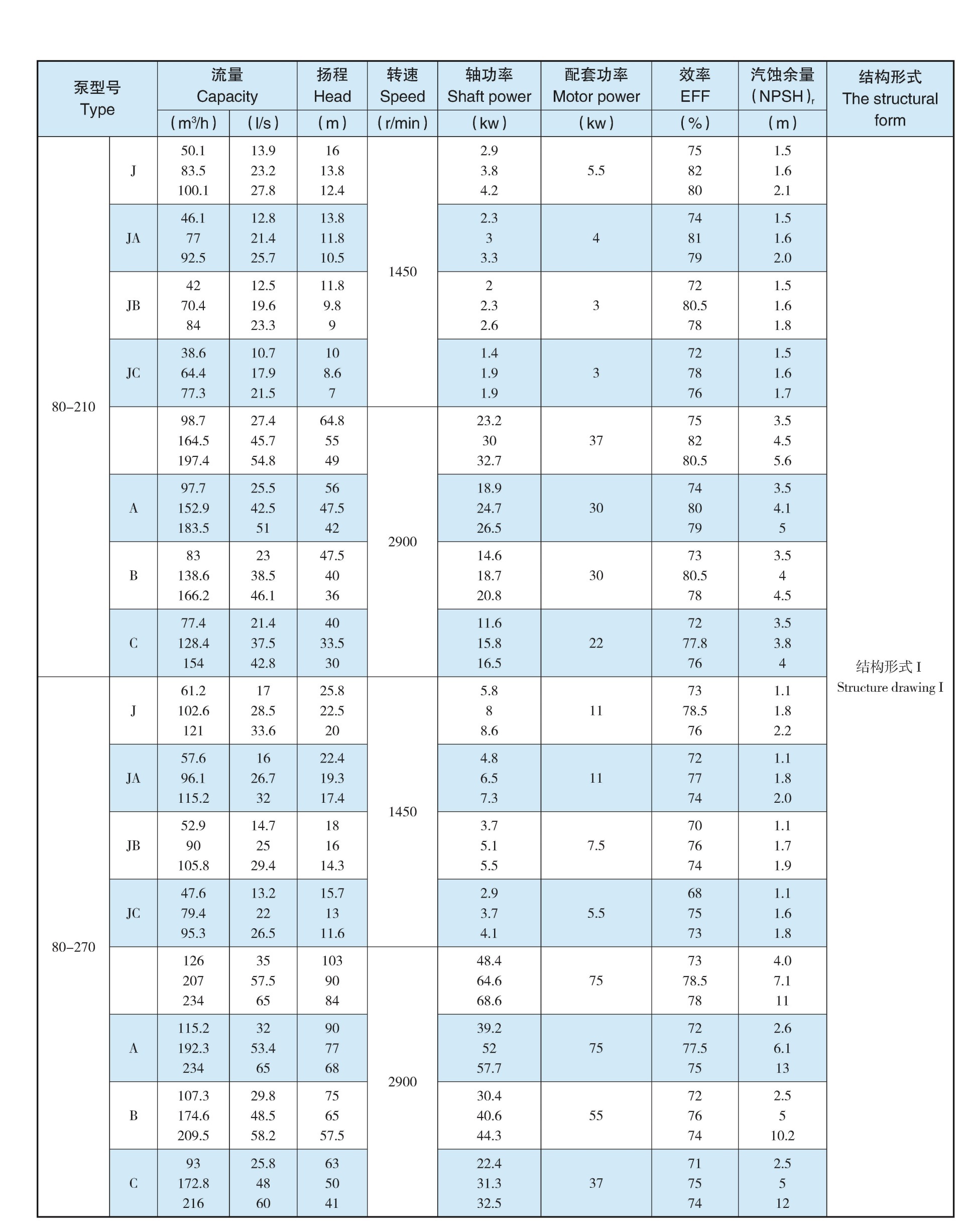

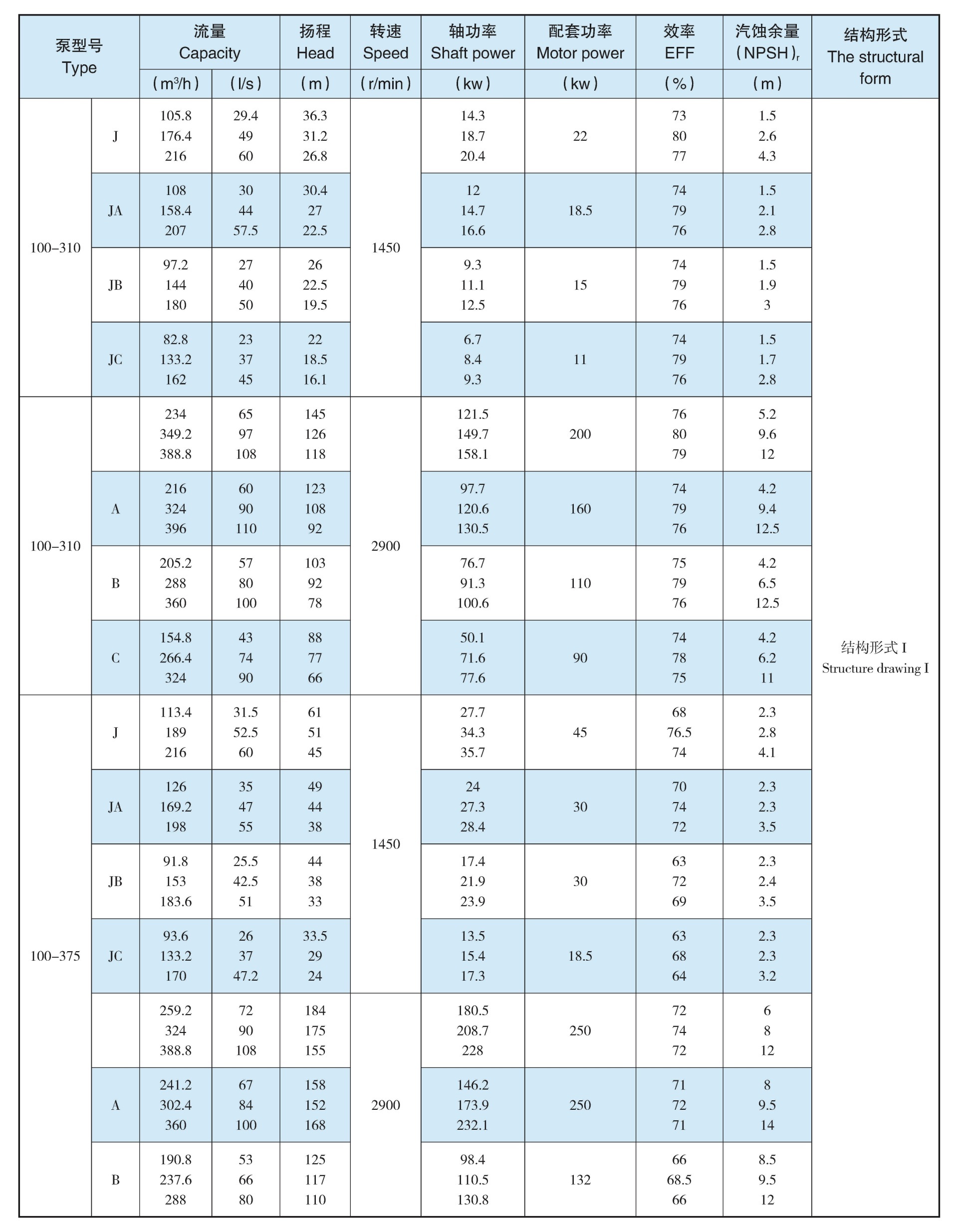

Main performance parameters ● Pump outlet diameter Dn: 80~900mm ● Capacity Q: 22~16236m3/h ● Head H: 7~300m ● Temperature T: -20℃~200℃ ● Solid parameter ≤80mg/L ● Permissible pressure ≤5Mpa
| Description of Pump Type ● For example：XS 250-450A-L(R)-J ● XS： advanced type split centrifugal pump ● 250：pump outlet diameter ● 450：standard impeller diameter ● A： Changed outer diameter of impeller (the max diameter without mark) ● L： vertical mount ● R： heating water ● J： Pump speed changed(Maintain the speed without mark) |

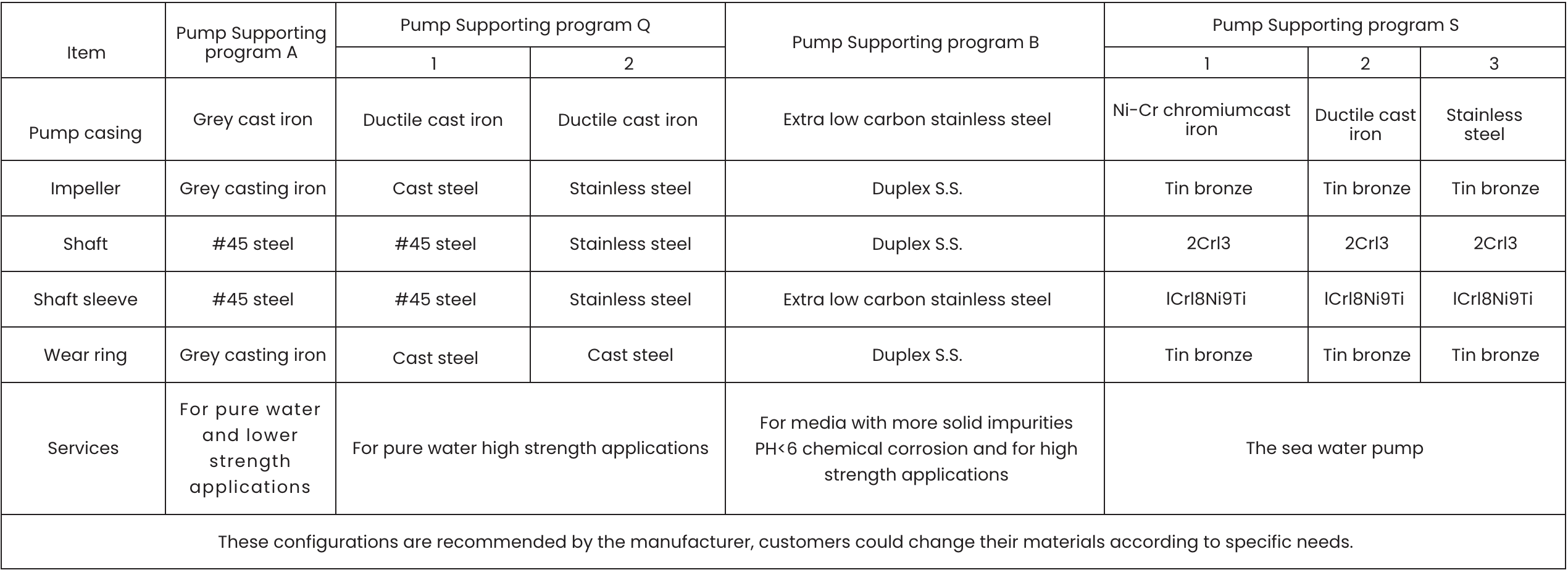

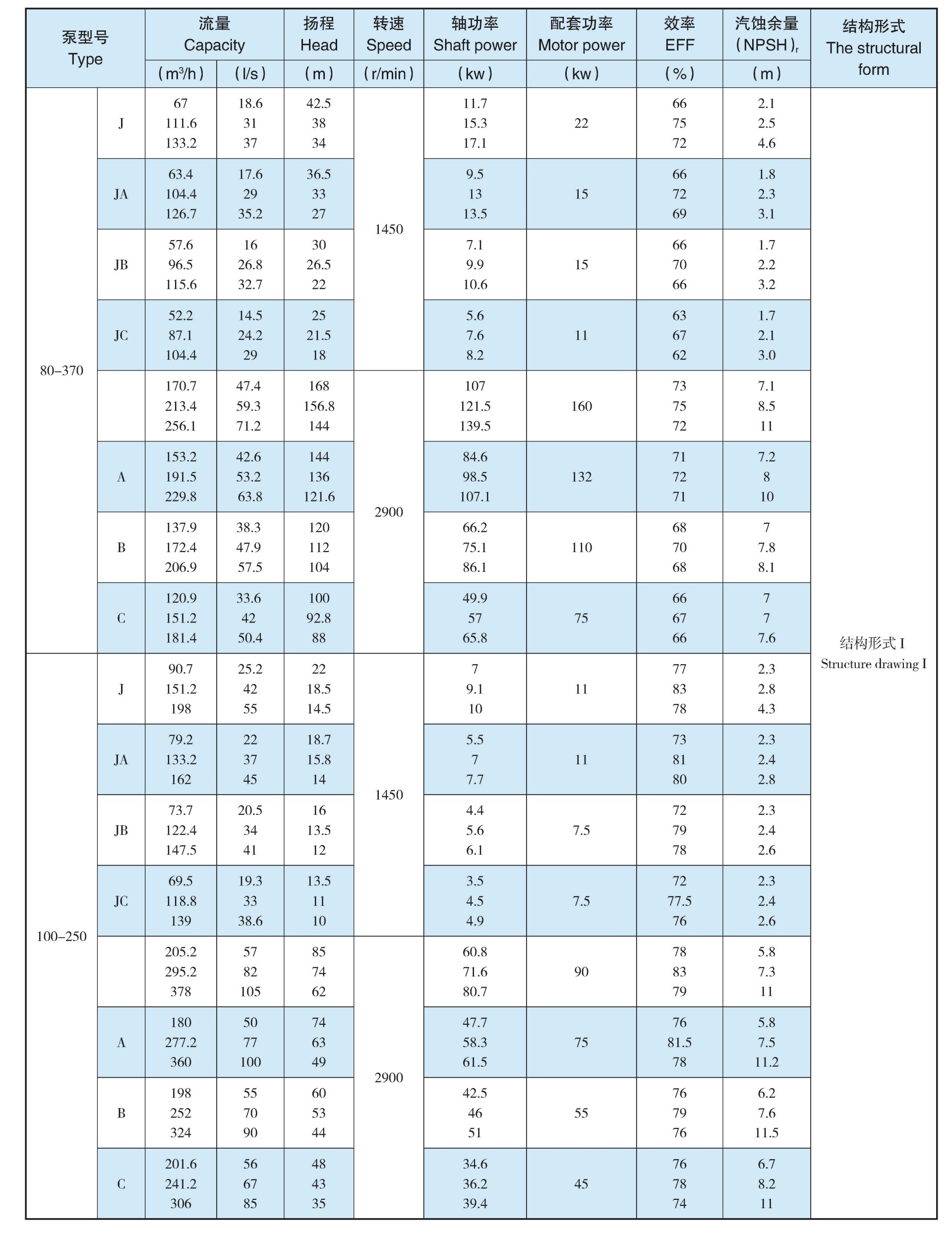

Pump Supporting program

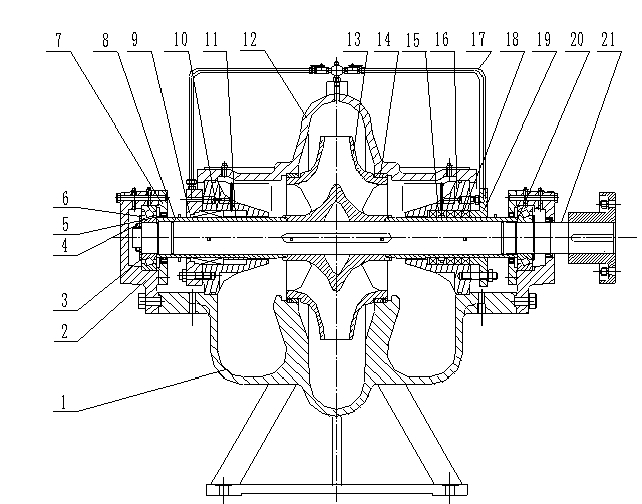

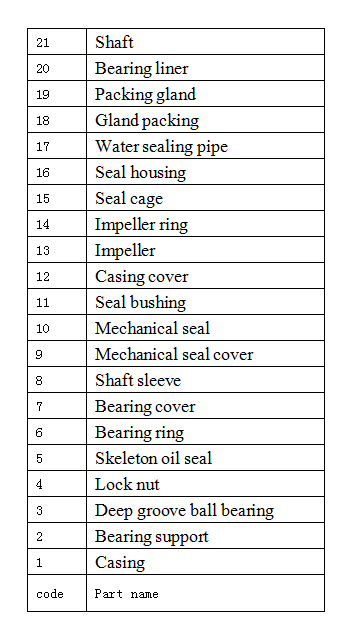

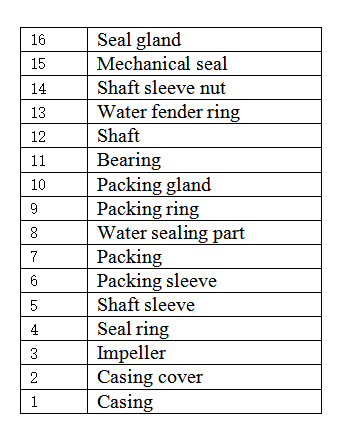

Construction drawing I
 |  |

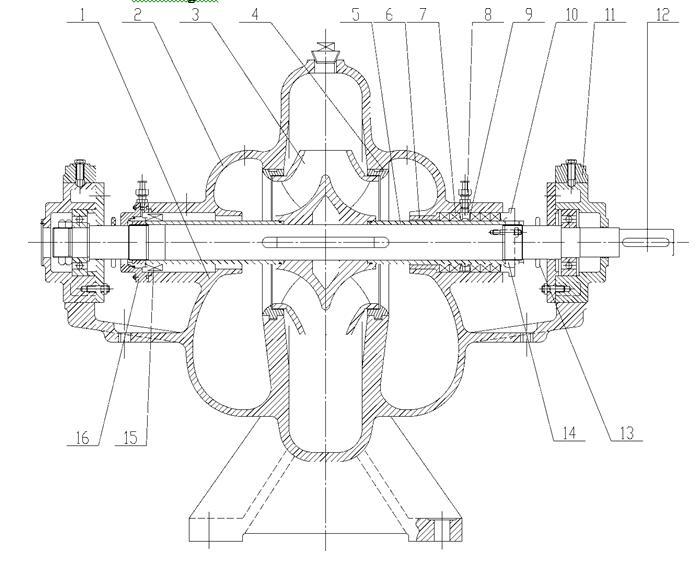

Construction drawing II
 |  |

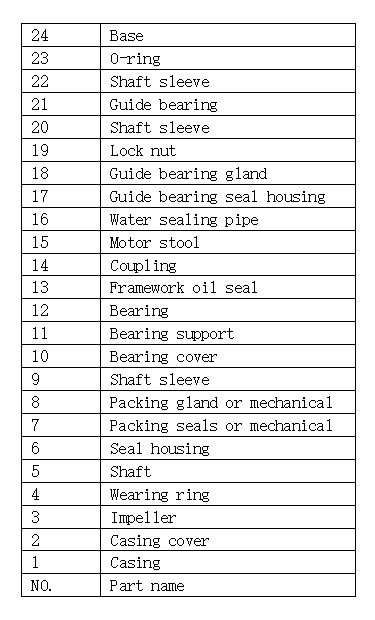

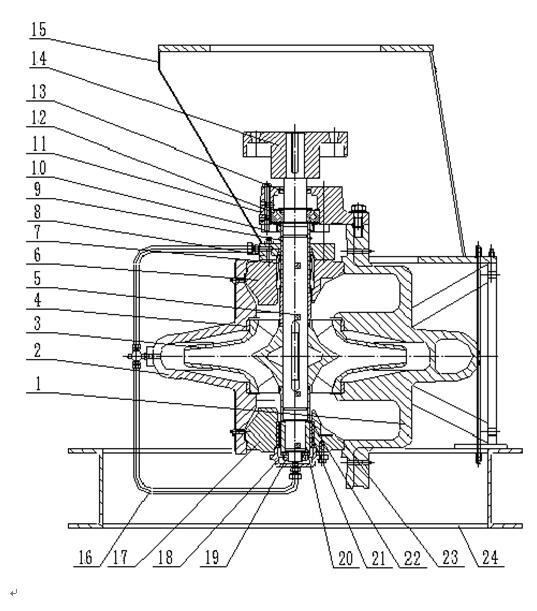

XS-L vertical structure
 |  |
⒈ Type XS pumps work stably with less noise and vibration, may be properly work at raising speed due to short spacing between both side supports, thus they can be widely used.
⒉ The pipelines arrangement of type XS pump looks simple and beautiful due to inlet and outlet at the same line.
⒊ The same rotor of type XS pumps can be operated in reverse direction to avoid damage to the pumps by water hammer.
⒋ Unique design of high temperature form: using middle support, thickening the pump casing, using cooling seals and oil lubrication bearing, make XS pump suitable for working at 200℃ , especially for suppling heating net system.
5. Type XS pump can be vertically or horizontally mounted according to different working condition, with mechanical seals or packing seals.
6. With industrial design, the outline of XS is clear and beautiful in line with modern aesthetics.
7. The efficiency of XS pumps are 2%~3% higher than the same type pumps due to adopting advanced hydraulic model and thus reduce the operating costs significantly.
8. The NPSHr of type XS pumps are 1-3 meters lower than the same type split pumps which reduced the foundation costs and extend the using life.
9. Choosing import brand bearing, and other parts material chosen by customer, make the pump suitable for any operation condition and reduce the maintenance cost significantly.
10. It is not necessary to adjust mechanical seals, so it is very easy and simple to replace them.
11. It is rapid and simple to assemble and dismount the rotor parts due to using elastic prestress assembling.
12. It is unnecessary to make adjustment to any clearance when assembling.
